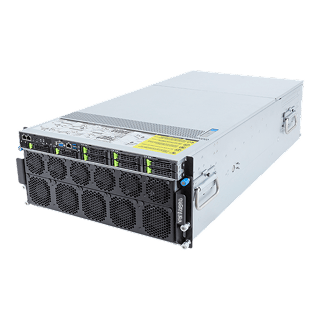

2450-RG-H100GPU
The Vantageo 2450-RG-H100GPU is a high-performance computing (HPC) and AI-optimized server designed for large-scale AI training, inference, and visual computing workloads. Engineered with dual 4th/5th Gen Intel® Xeon® Scalable processors (up to 350W TDP) and NVIDIA HGX™ H100 GPUs, it delivers 32 petaFLOPS of FP8 deep learning performance with full NVLink™/NVSwitch™ interconnectivity for seamless GPU-to-GPU communication
Easy Management and Convenient Maintenance
High Availability and High Reliability
Technical Specifications
| Category | Specification |
|---|---|
| Processors | Dual 4th/5th Gen Intel® Xeon® Scalable or Xeon® Max Series (LGA 4677, up to 350W TDP) |
| GPUs | 8x NVIDIA H100 SXM5 (HGX™) with NVLink™/NVSwitch™ (900GB/s bandwidth) |
| Memory | 32x DDR5 DIMMs (8-channel, RDIMM) |
| Storage | 8x 2.5" hot-swap bays (Gen5 NVMe/SATA/SAS-4) |
| PCIe Expansion | 12x slots: - 8x LP PCIe Gen5 x16 - 4x FHHL PCIe Gen5 x16 |
| Networking | 2x 10GbE LAN (Intel® X710-AT2), 2x 1GbE management ports |
| Accelerators | Supports NVIDIA BlueField®-3 DPUs and SuperNICs |
| Power Supplies | 4+2 3000W Titanium (80 PLUS, redundant) |
| Cooling | Adaptive fan control with 25,000rpm fans (GPU/PCIe zones) |
| Security | TPM 2.0, LDAP/RADIUS, hardware firewall |
| Management | HTML5 KVM, remote BIOS/BMC updates, power capping |
| Dimensions | 447 × 219.7 × 945 mm (W×H×D) |
| Weight | 91 kg (net) |
| Operating Environment | 10°C–35°C, 8–80% humidity (non-condensing) |
